Woven-In-Flat-Bar with Clevises

Product Details

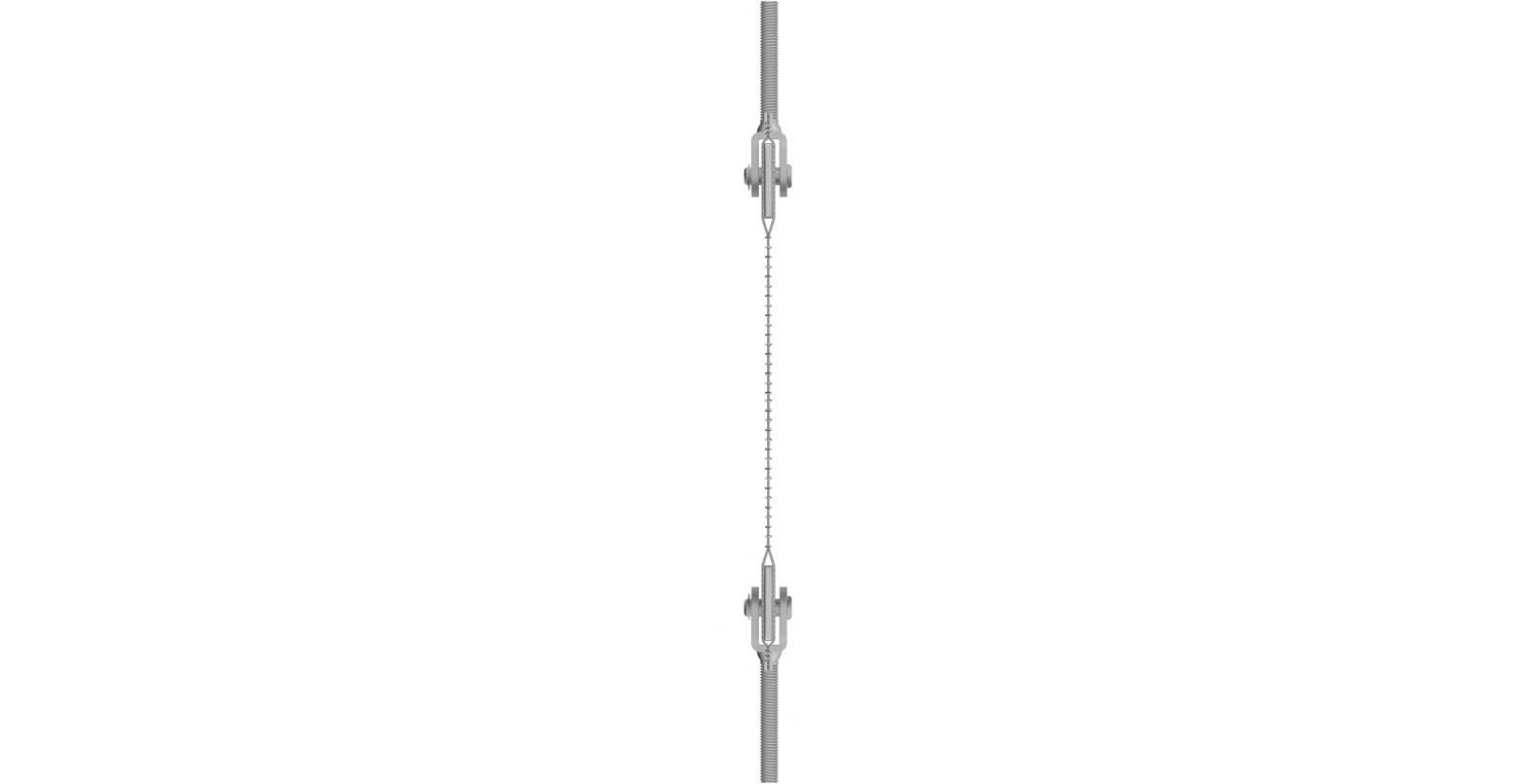

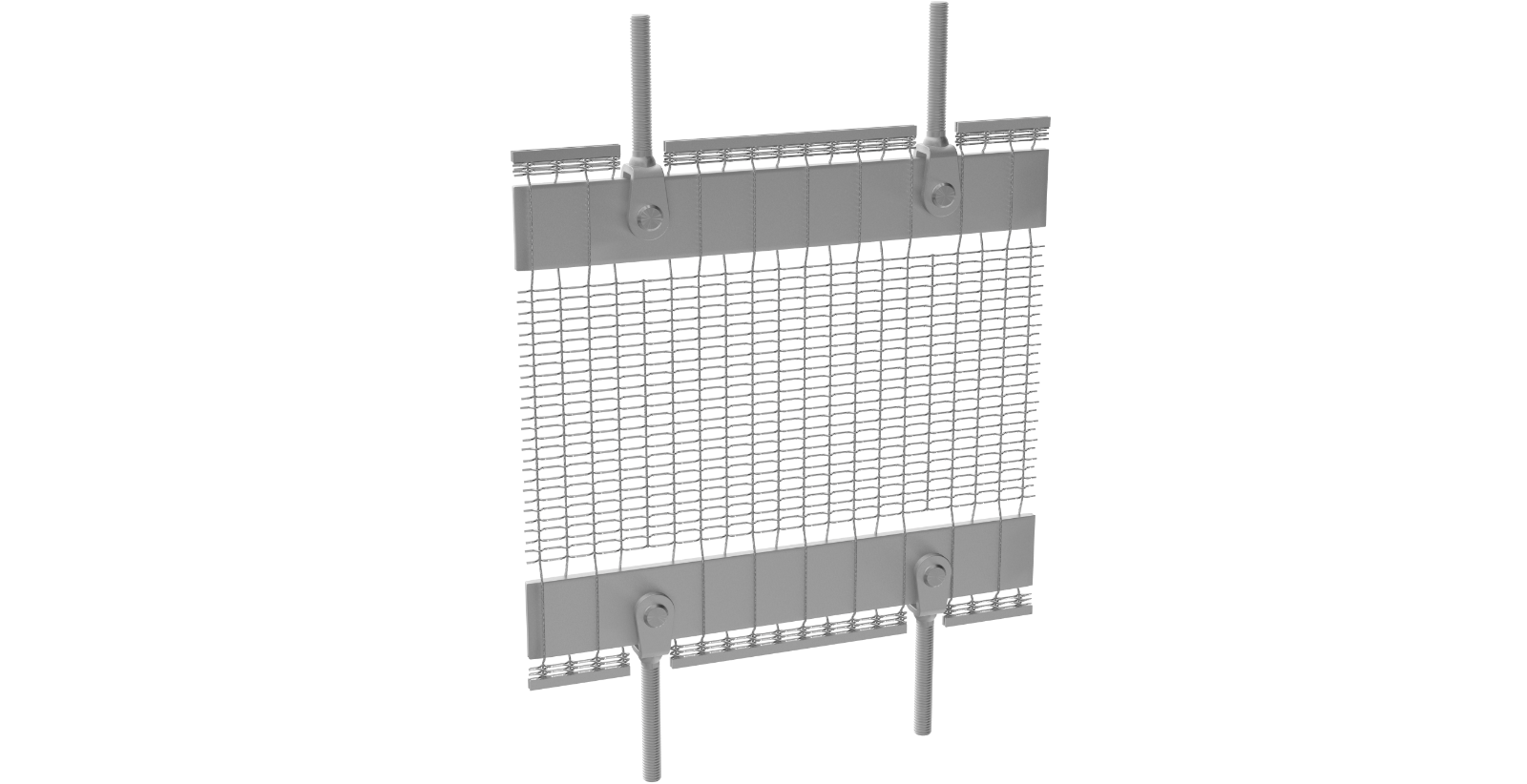

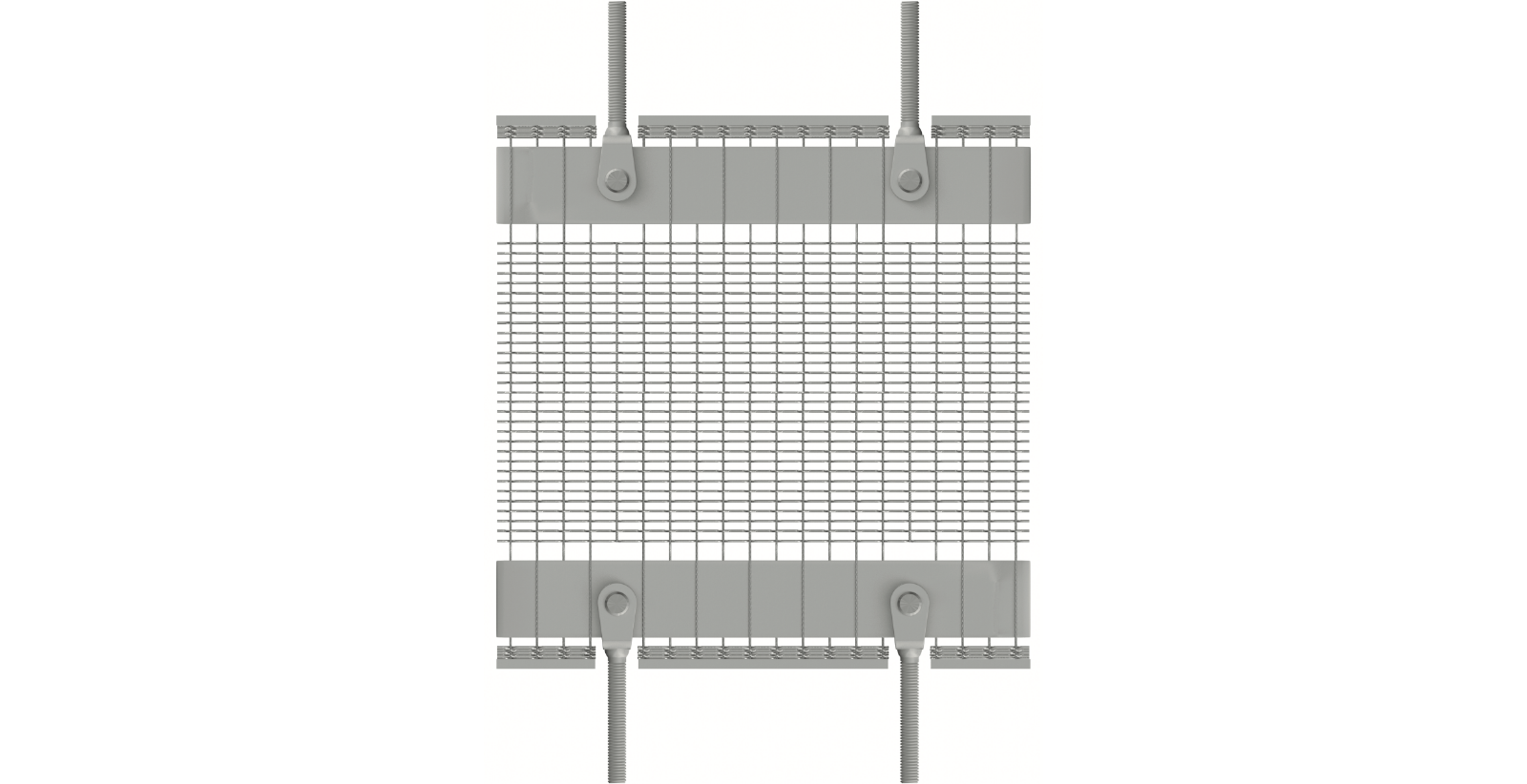

A flat bar woven into the mesh serves as a connecting member from the metal fabric to the top and/or bottom brackets.

Download: Data Sheet
Applications: Ceilings, Etched Graphics, Facades, Parking, Railing, Safety & Security, Solar Control
Projects: Houston Area Safety Council, University of Florida - Research and Academic Center at Lake Nona
Metal Fabrics: Helix 12, Helix 36, Helix 48, Helix 72, Tigris, Sambesi, Lago, Lamelle, Omega 1500, Omega 1510, Omega 1520, Omega 1530, Omega Divergence, Helix 24, Omega 1550 View more
