Outrigger Tension System

Product Details

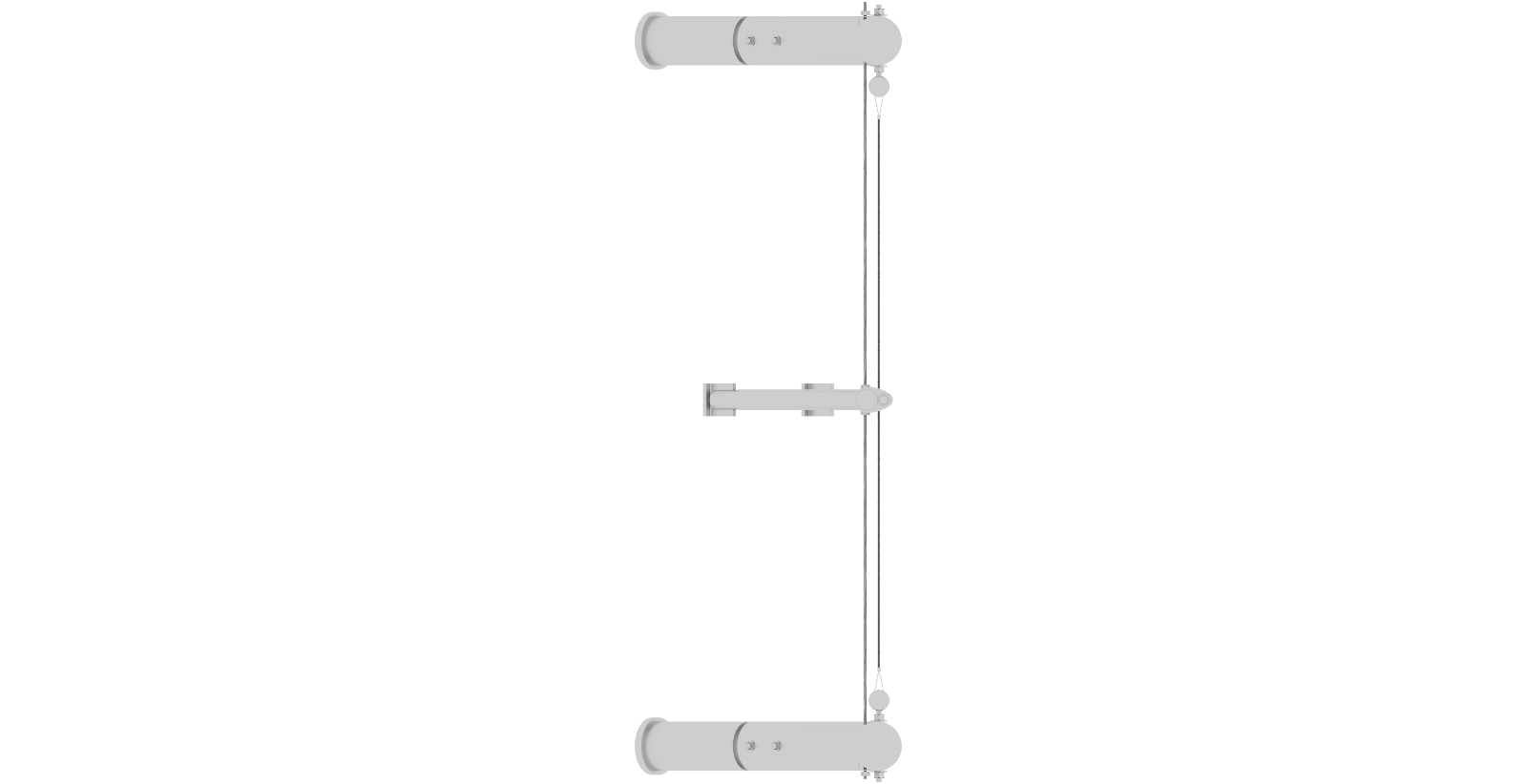

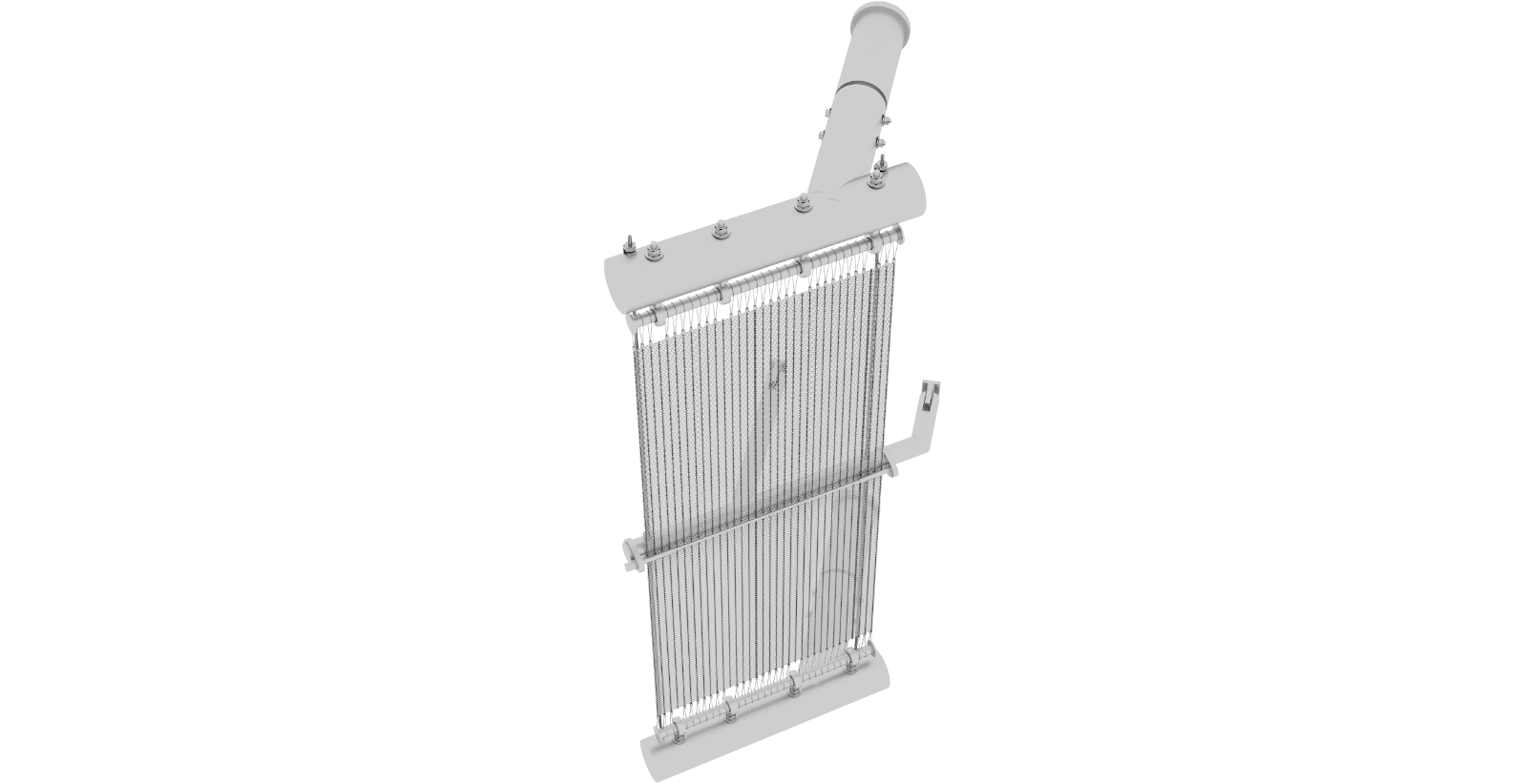

In this exclusive GKD attachment innovation, top and bottom arms serve as the primary anchor support. Smaller intermediate supports stabilize at every floor plate, imparting no vertical support reactions back to the curtain wall mullions. The outrigger is effective in optimizing building facades for solar control.

Download: Data Sheet
Applications: Etched Graphics, Facades, Parking, Solar Control
Projects: Eastern Michigan University - Mark Jefferson Science Complex
Metal Fabrics: Chesapeake, Omega 1550

Warning: Undefined variable $post in /srv/users/gkdmetalfabrics-dev/apps/gkdmetalfabrics-dev/public/wp-content/themes/maxcanvas_child/woocommerce/single-product/add-to-cart/simple.php on line 43
