Ogee

Product Details

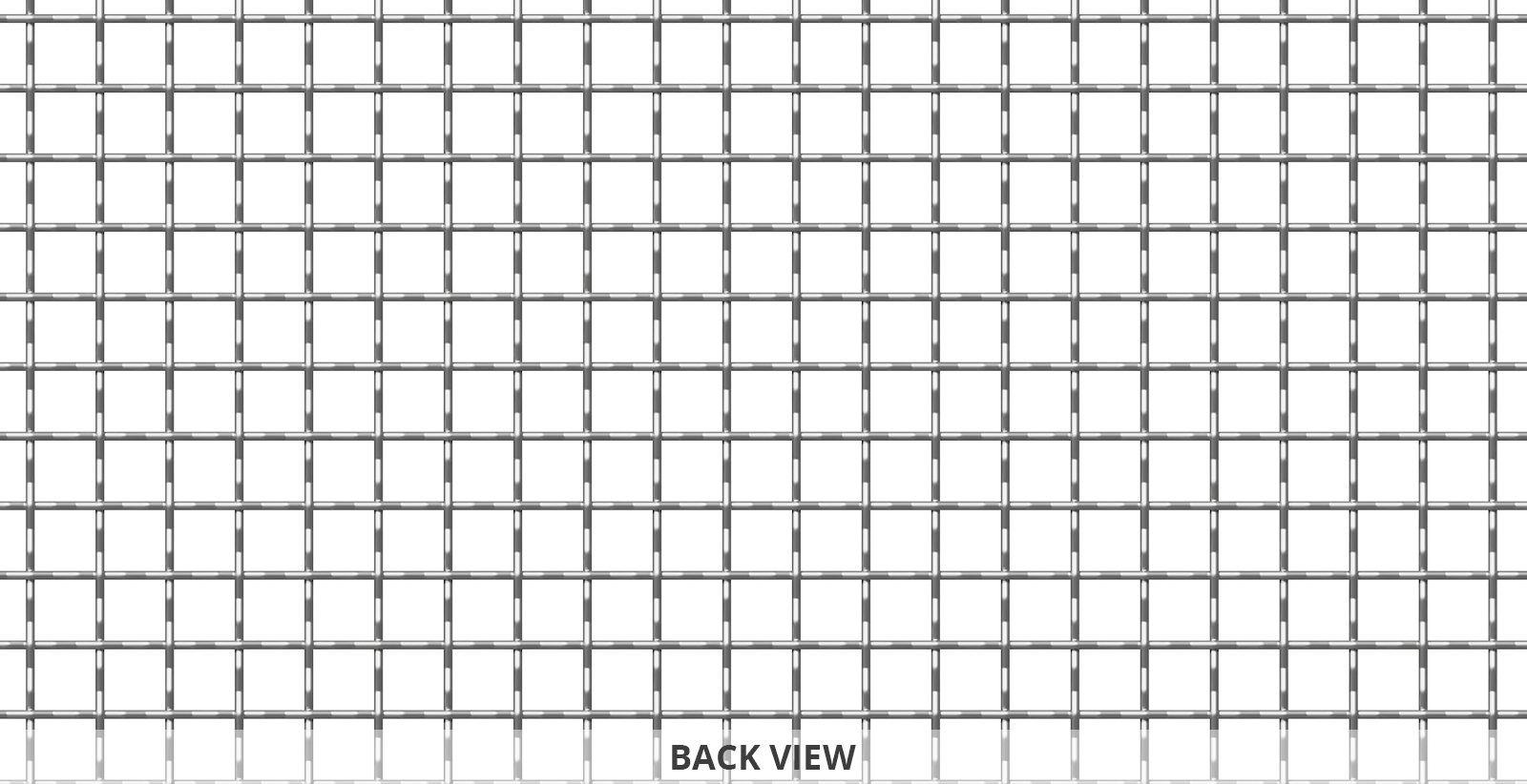

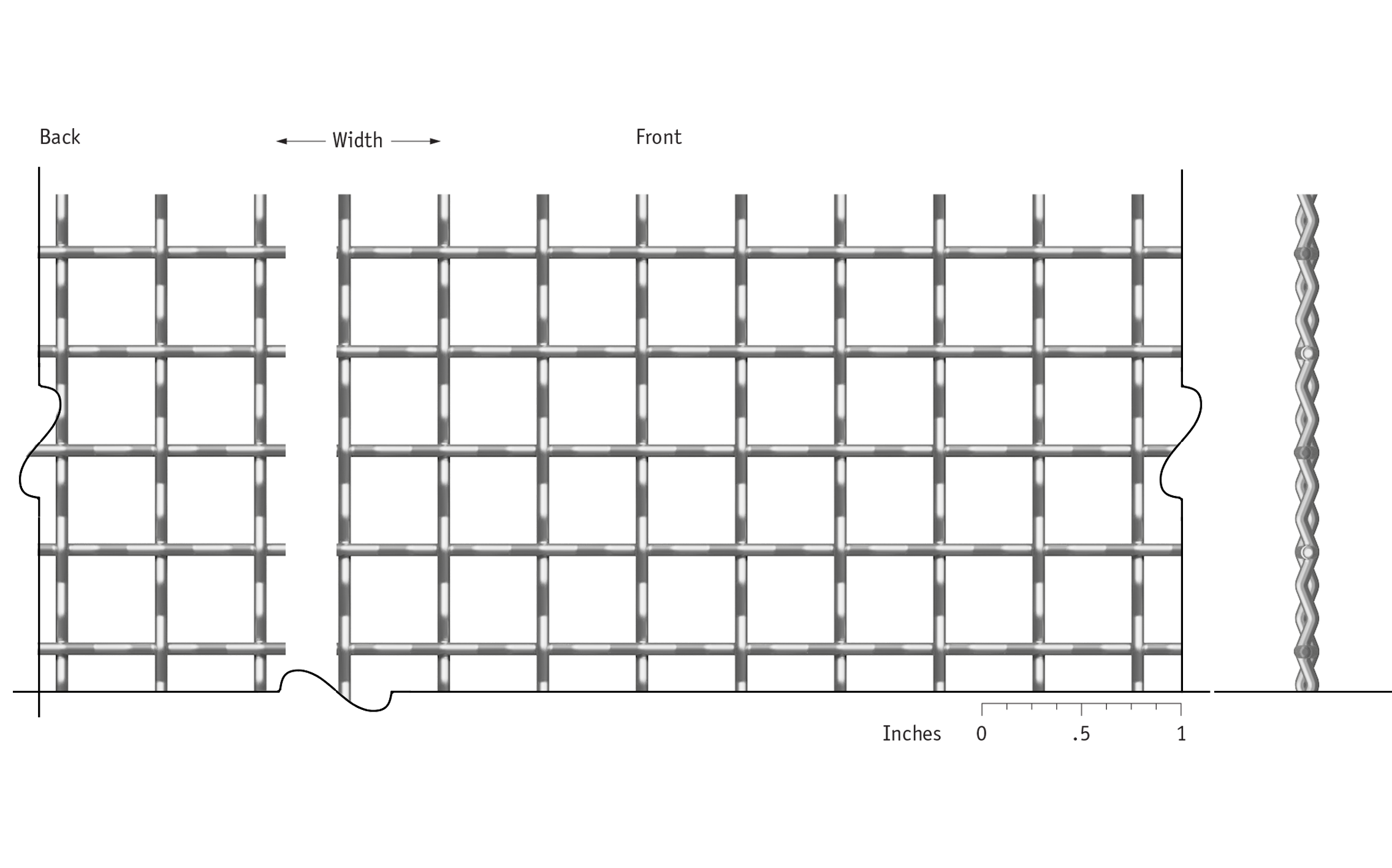

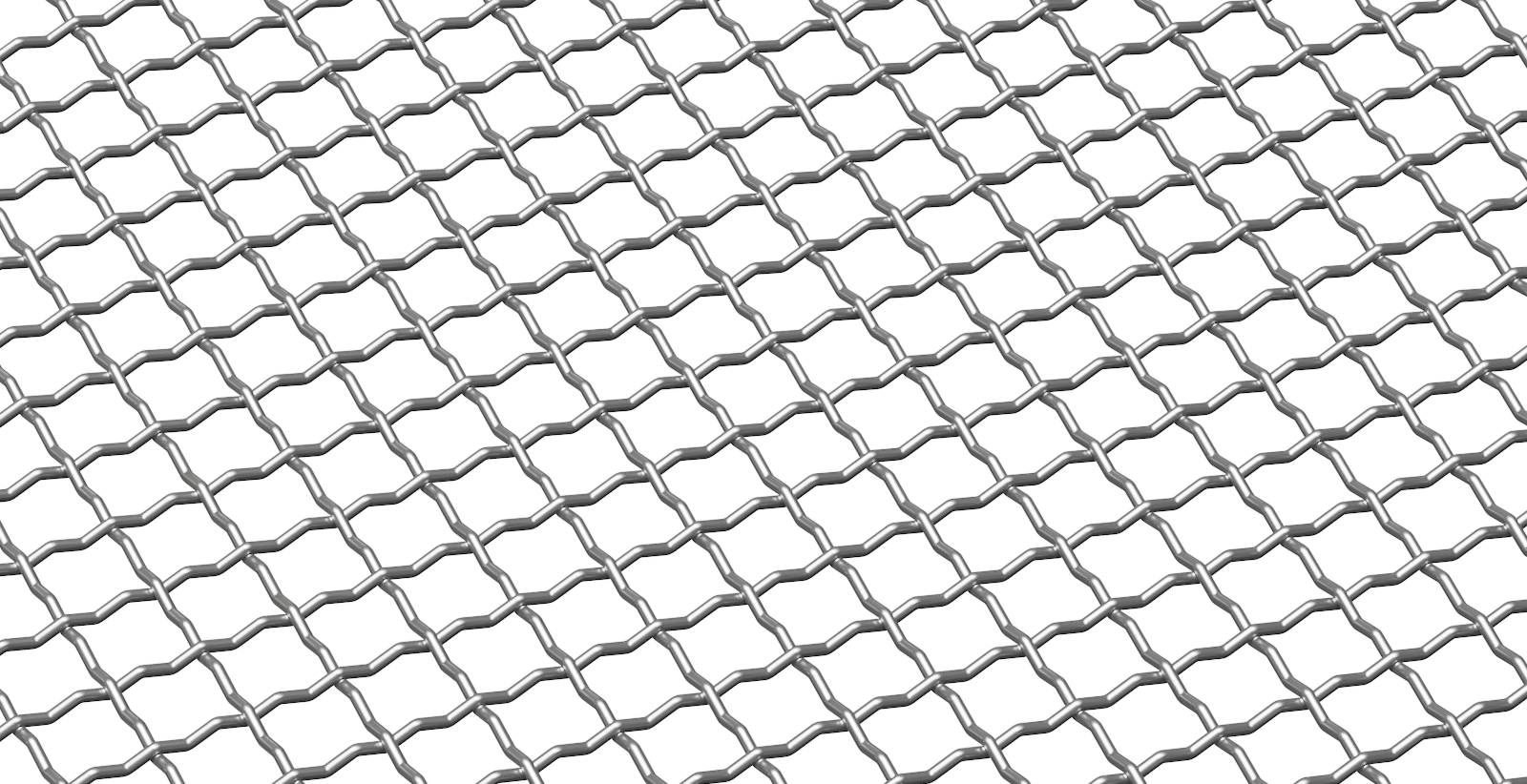

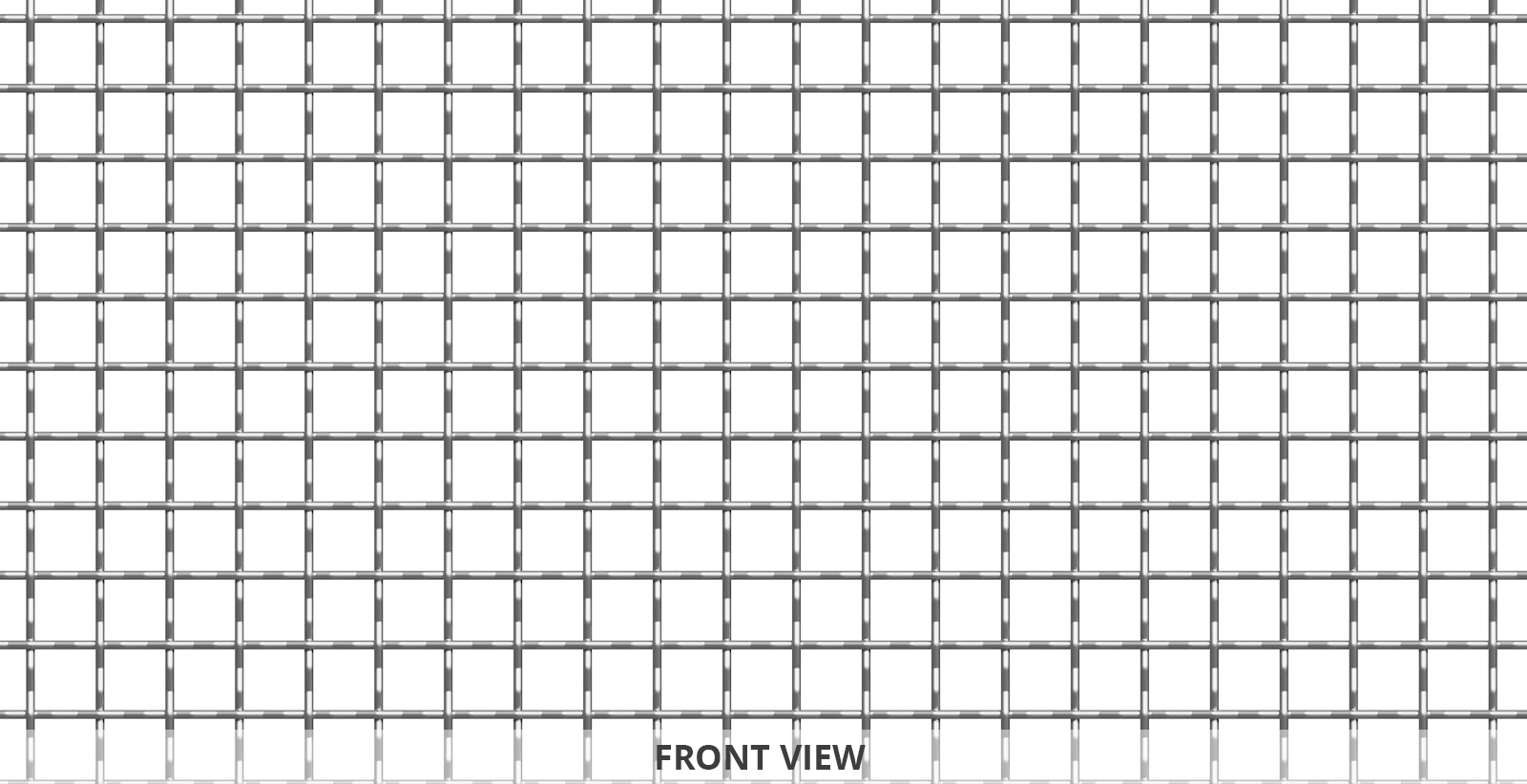

a double intermediate crimped weave utilizing extra crimps in the warp and weft wires between the intersections. This creates a rigid mesh with texture and flow.

Material: Bronze Stainless Steel

*confirm availability for different alloys, colors, and textures

Type:

Flexible - Flexible cable fabrics are woven of precision wire cable in the warp (vertical) direction and a solid wire in the weft (horizontal) direction giving flexibility to the fabric in one direction.

Multi-Flex - Select fabrics are flexible in both the warp and weft direction.

Rigid - Woven of solid wires in both the warp and weft directions for a stiff fabric in all directions.

Rigid

Weight: 0.54 psf (Stainless Steel), 0.61 psf (Bronze)

Max Width: 101"

Open Area: 75%

Download: Data Sheet

Applications: Ceilings, Covering, Enclosures, Facades, Mesh Partitions, Partitions, Specialties
