Mediamesh V4xH5.0

Name: Mediamesh V4xH5.0
SKU: 789
Availability: InStock

Product Details

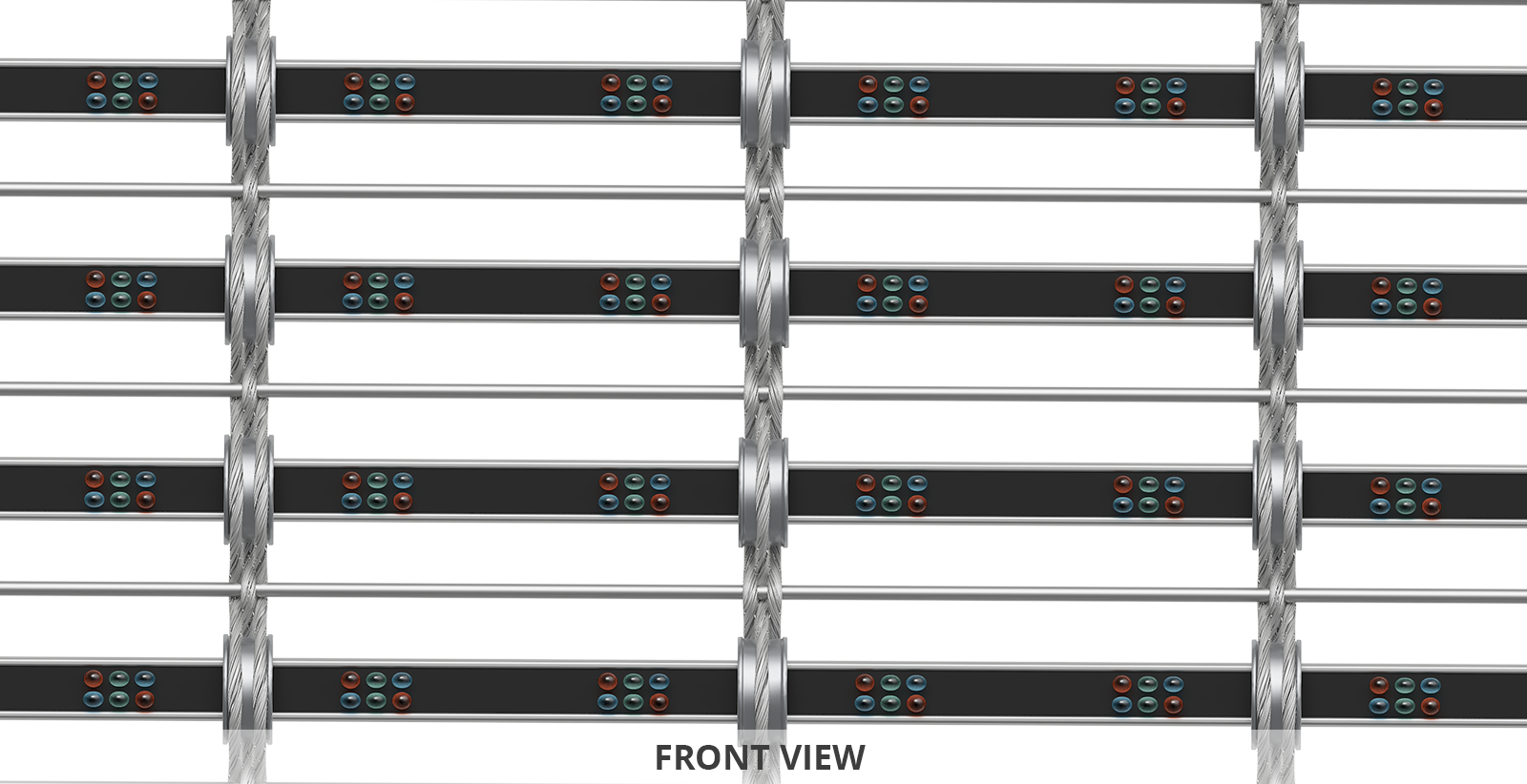

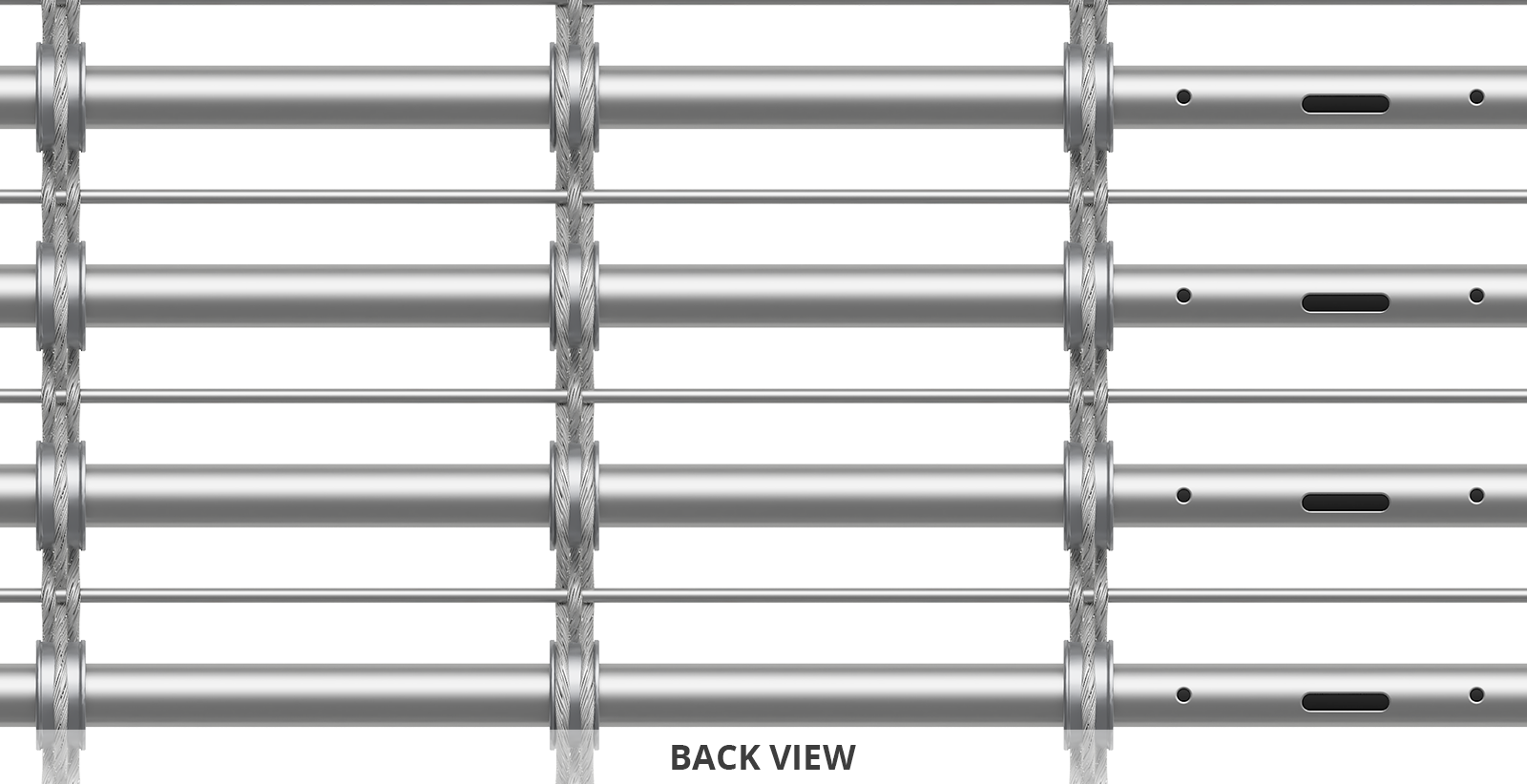

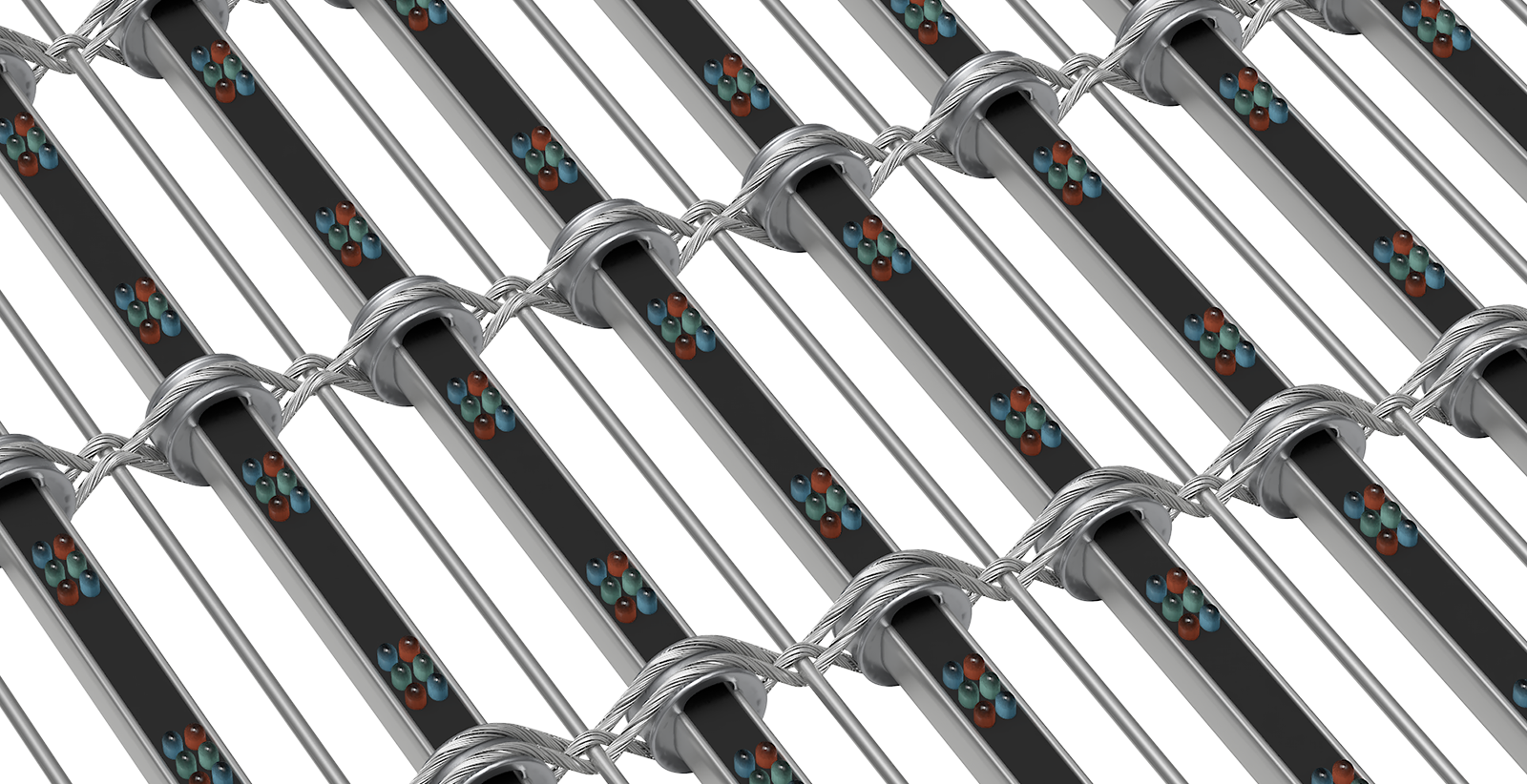

With an exceptionally deep color palette and remarkable brilliance, Mediamesh technology is used to display large-format graphics, animations, video clips and real-time data feeds. Mediamesh fabric is flexible in the length direction allowing it to be rolled for transport.

Material: Stainless Steel

*confirm availability for different alloys, colors, and textures

Type:

Flexible - Flexible cable fabrics are woven of precision wire cable in the warp (vertical) direction and a solid wire in the weft (horizontal) direction giving flexibility to the fabric in one direction.

Multi-Flex - Select fabrics are flexible in both the warp and weft direction.

Rigid - Woven of solid wires in both the warp and weft directions for a stiff fabric in all directions.

Flexible

Weight: 1.95 psf

Max Width: 13'

Open Area: 55%

Download: Data Sheet

Applications: Mediamesh

Projects: Cleveland Institute of Art, Cook Childrens Health Care System Parking Garage, Long Beach Court House, Tripoli Convention Centre, Muscat Airport, Virginia Commonwealth University - James Branch Cabell Library

Attachment Solutions: Woven-In-Bar with Hook Brackets & Springs, Woven-In-Bar Hook Brackets & Eyebolts, Woven-In-Bar with Eyebolts Top & Bottom
