Product Details

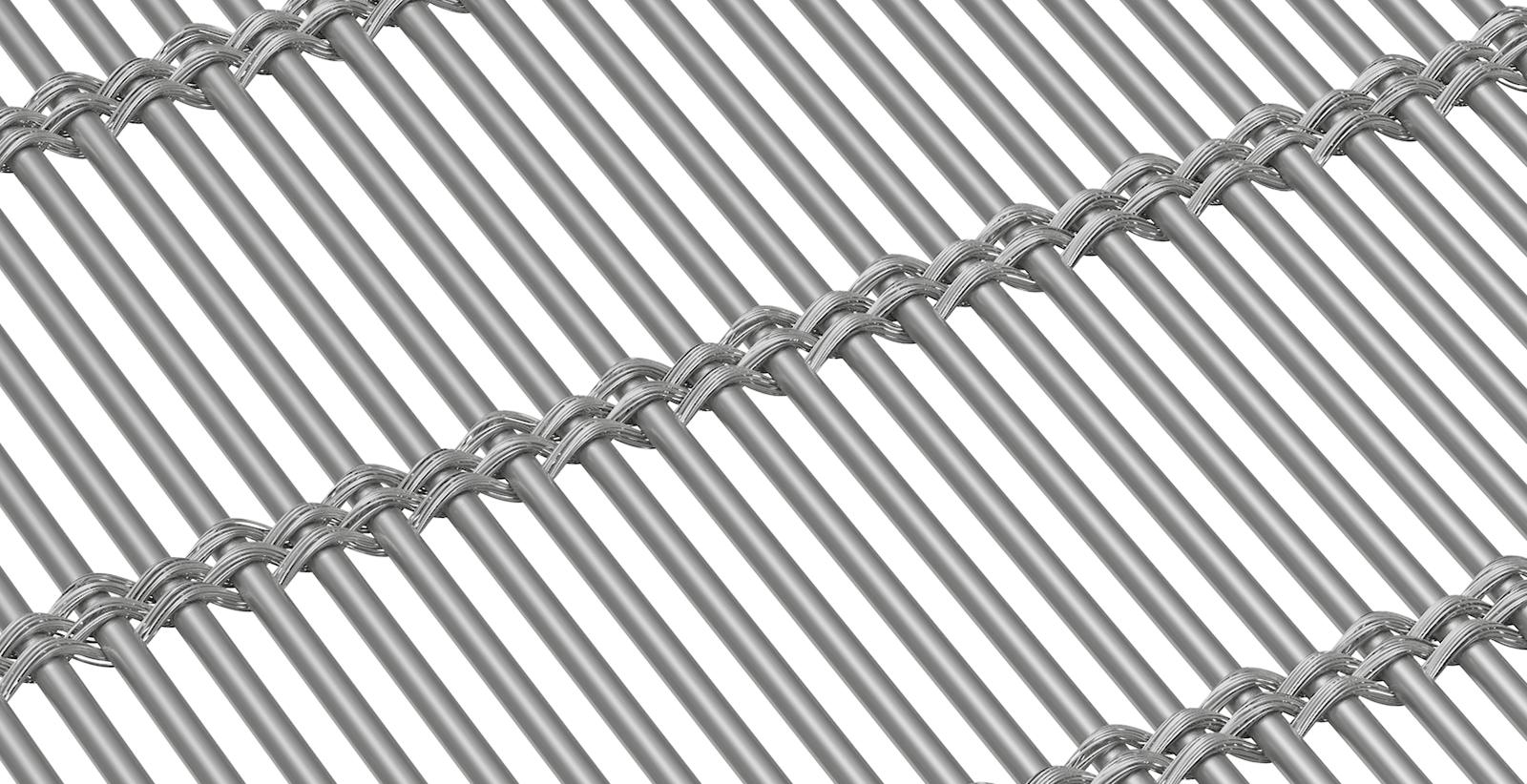

Similar to Futura 3110 but with a pattern smaller in scale, Lago features a cluster of four cable wires woven onto a round weft rod.
Material:
Stainless Steel
*confirm availability for different alloys, colors, and textures
Type:
Flexible
Flexible - Flexible cable fabrics are woven of precision wire cable in the warp (vertical) direction and a solid wire in the weft (horizontal) direction giving flexibility to the fabric in one direction.
Multi-Flex - Select fabrics are flexible in both the warp and weft direction.
Rigid - Woven of solid wires in both the warp and weft directions for a stiff fabric in all directions.
Weight:
1.05 psf
Max Width:
26'
Open Area:
46%
Download:
Data Sheet
Applications:
Covering, Etched Graphics, Facades, Parking, Railing, Safety & Security, Solar Control
Projects:
GKD-USA Headquarters, Arizona State University - Walter Cronkite School of Journalism and Mass Communication, Van Nuys Flyaway, Amgen Helix Pedestrian Bridge, Chambre de Metiers et de L'Artisanat, Congress of Deputies of Spain, Hartford Hospital Parking Garage, Möbel Pfister, RMIT University - School of Fashion and Textiles, South Glasgow University Hospital - Imaging Centre of Excellence View more
Attachment Solutions:
Woven-In-Bar with Hook Brackets & Springs, Woven-In-Bar Hook Brackets & Eyebolts, Woven-In-Bar with Eyebolts Top & Bottom, StealthLok, Woven-In-Flat-Bar with Clevises, Flat & Angle Frame, Flats with Flat Eyes, Flats with Clevis, Flat and Angle with Threaded Rod
