Helix 72

Name: Helix 72
SKU: 781
Availability: InStock

Product Details

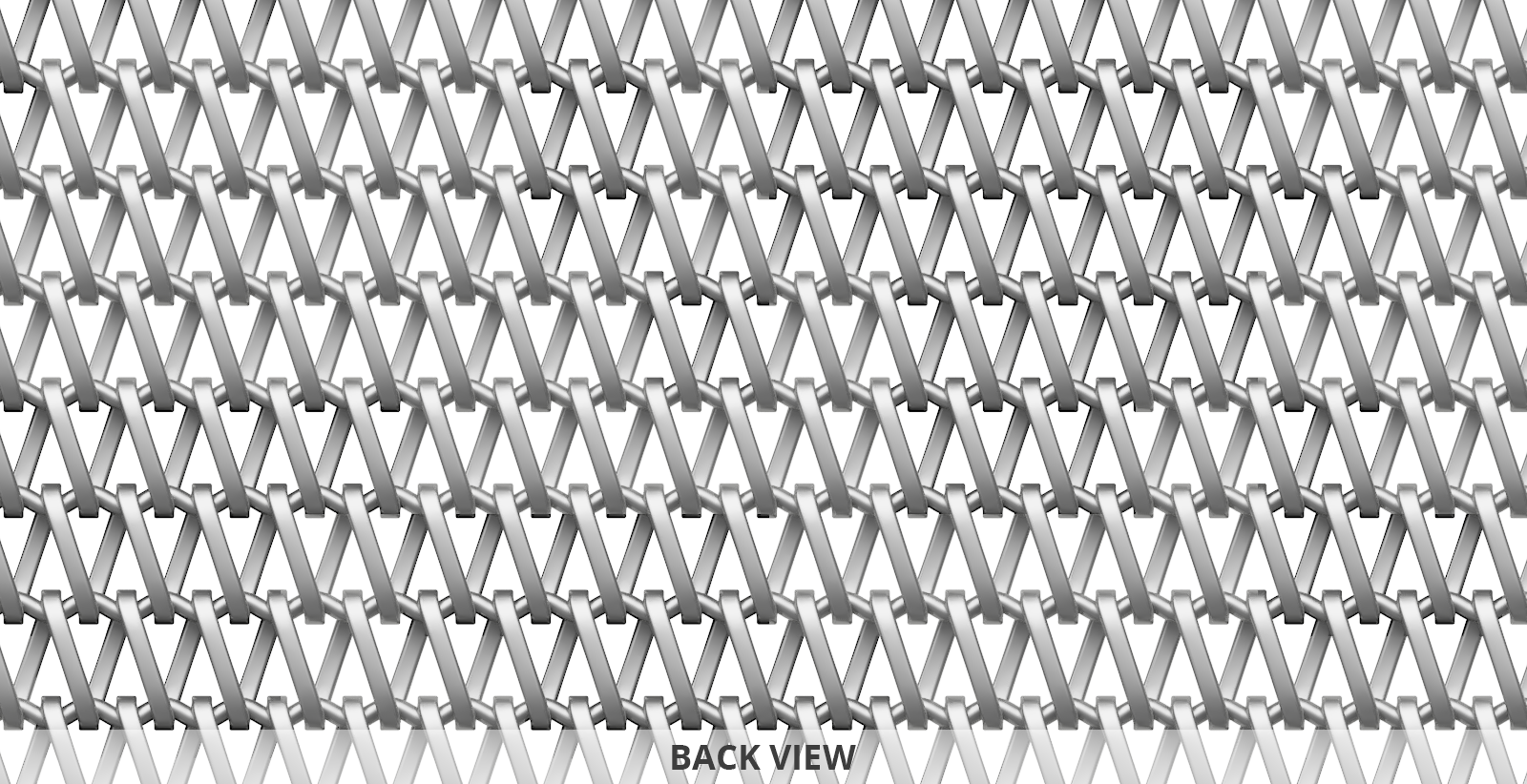

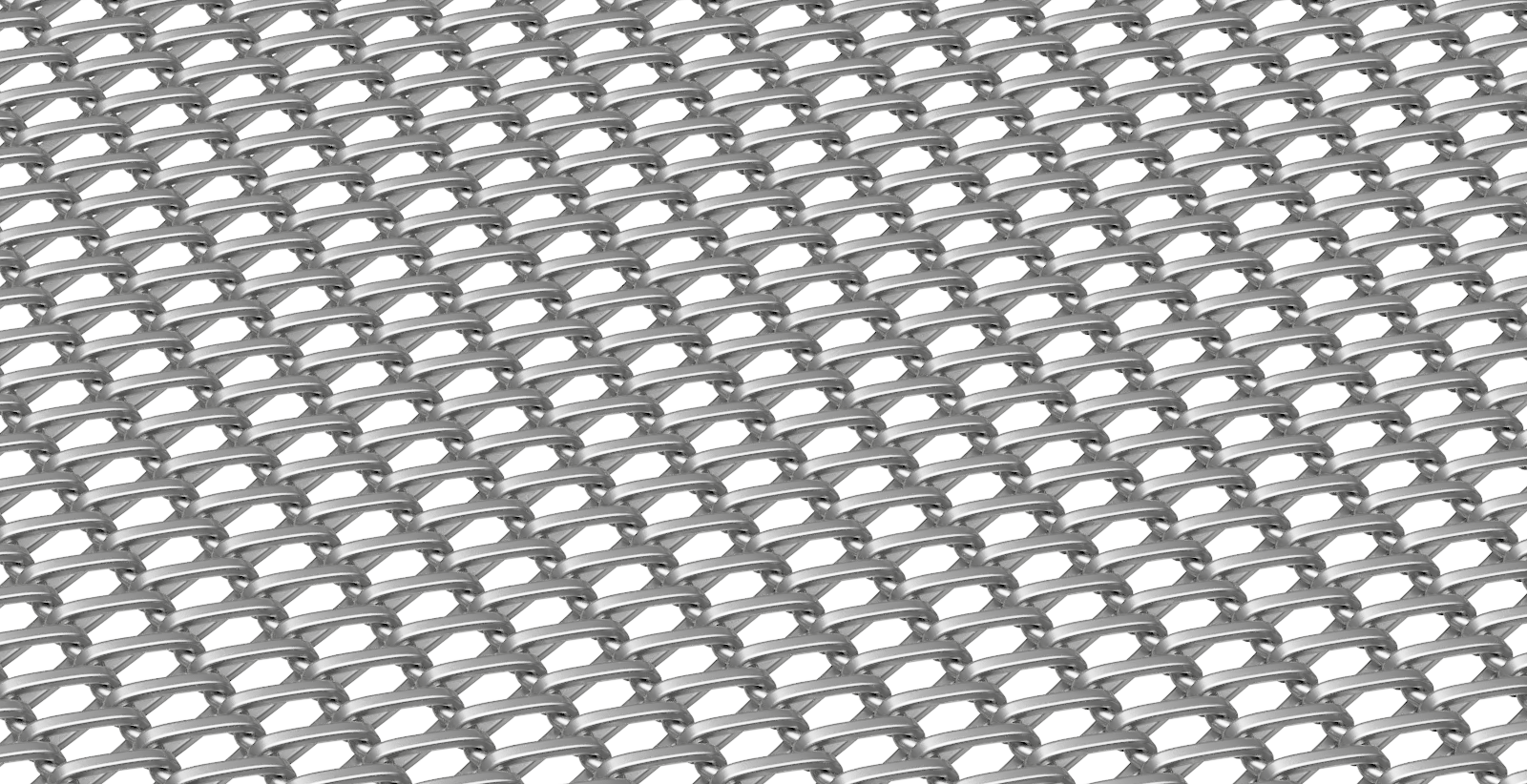

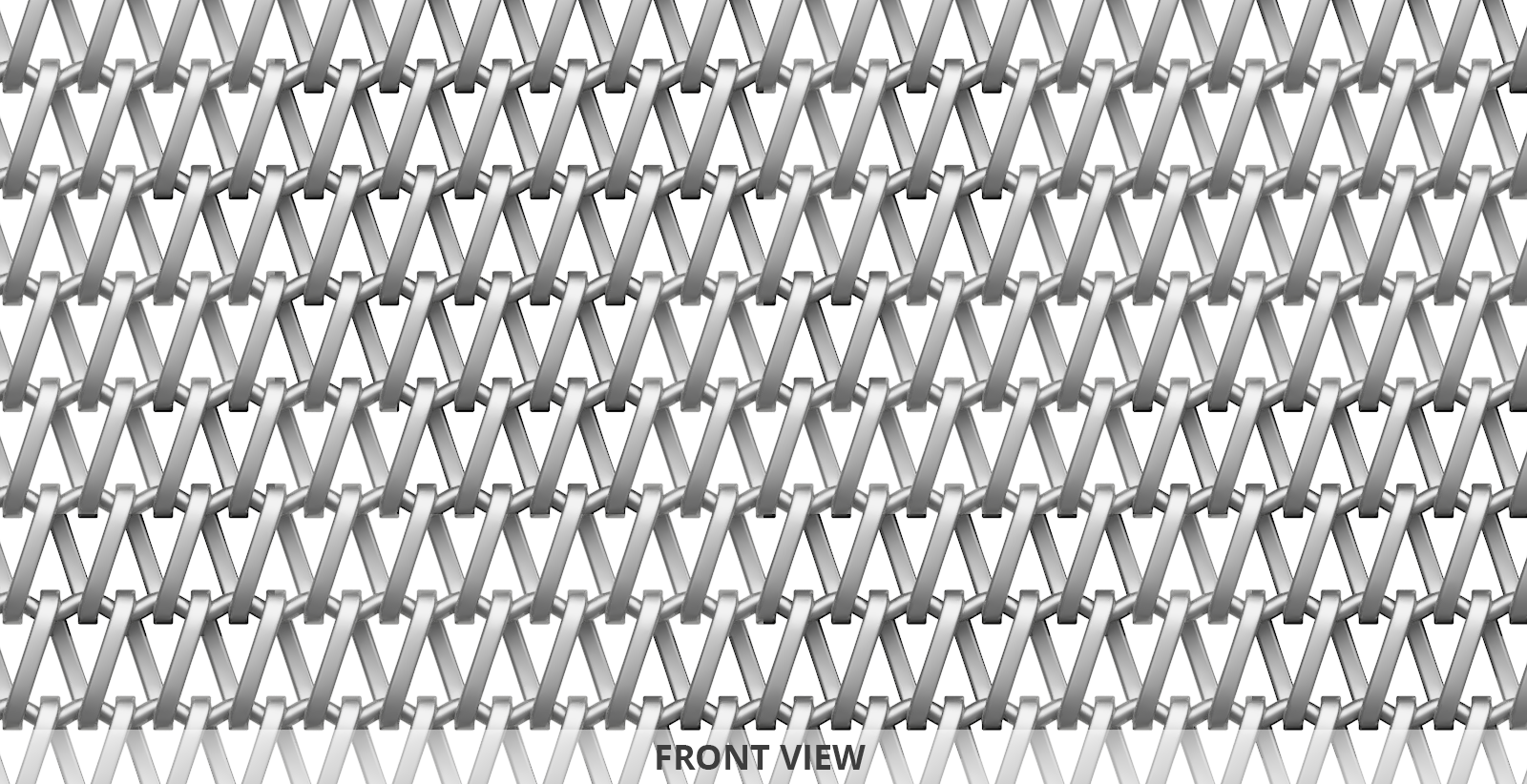

Helix features a spiraling flat wire hinged around a crimped connector wire allowing for flexibility in the length direction. The Helix series varies in wire diameter and mesh opening.

Material: Bronze Stainless Steel

*confirm availability for different alloys, colors, and textures

Type:

Flexible - Flexible cable fabrics are woven of precision wire cable in the warp (vertical) direction and a solid wire in the weft (horizontal) direction giving flexibility to the fabric in one direction.

Multi-Flex - Select fabrics are flexible in both the warp and weft direction.

Rigid - Woven of solid wires in both the warp and weft directions for a stiff fabric in all directions.

Flexible

Weight: 1.75 psf

Max Width: 20'

Open Area: 25%

Download: Data Sheet

Applications: Ceilings, Covering, Enclosures, Etched Graphics, Facades, Parking, Partitions, Railing, Safety & Security, Solar Control, Steelweave View more

Attachment Solutions: Woven-In-Bar with Hook Brackets & Springs, Woven-In-Bar Hook Brackets & Eyebolts, Woven-In-Bar with Eyebolts Top & Bottom, U-binding Frame, StealthLok, Woven-In-Flat-Bar with Clevises, Flat & Angle Frame, Flats with Flat Eyes, Flats with Clevis, Flat and Angle with Threaded Rod, Eyehooks, Eyebolts
Warning: Undefined variable $html1 in /srv/users/gkdmetalfabrics-dev/apps/gkdmetalfabrics-dev/public/wp-content/themes/maxcanvas_child/inc/woo.php on line 116

Warning: Undefined variable $post in /srv/users/gkdmetalfabrics-dev/apps/gkdmetalfabrics-dev/public/wp-content/themes/maxcanvas_child/woocommerce/single-product/add-to-cart/simple.php on line 43
COLOR AND SURFACE OPTIONS Contact Us
