Helix 24

Name: Helix 24
SKU: 778
Availability: InStock

Product Details

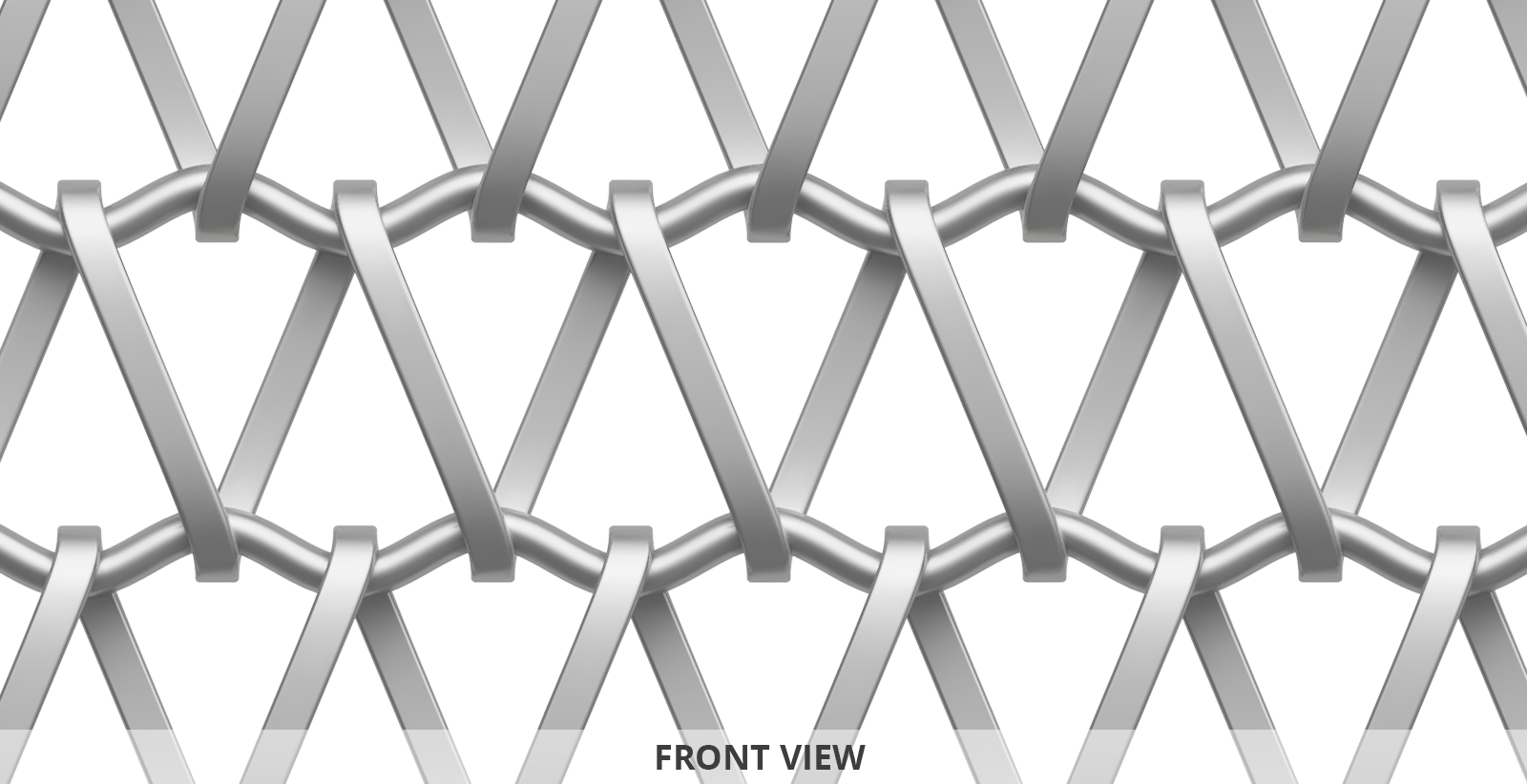

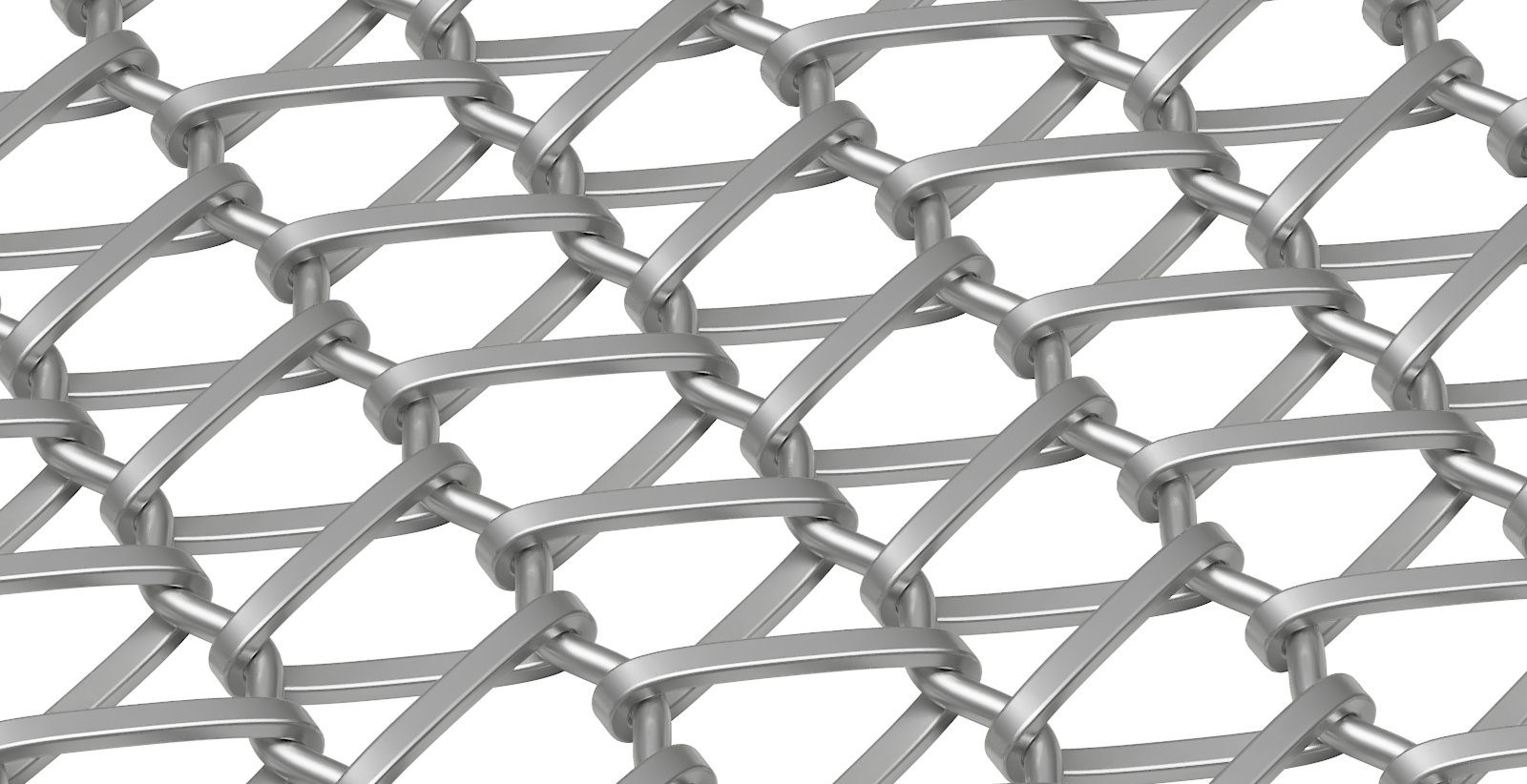

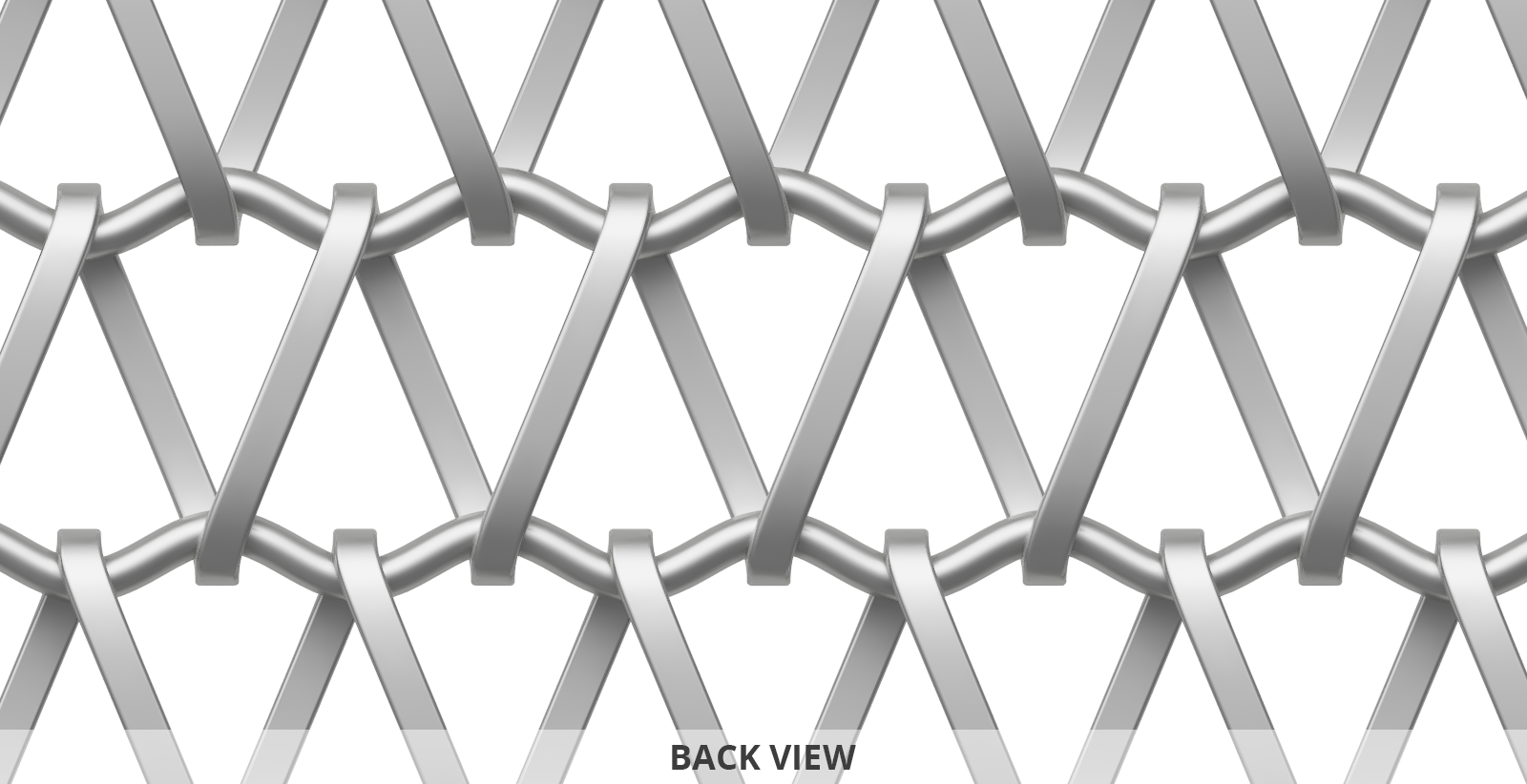

Helix features a spiraling flat wire hinged around a crimped connector wire allowing for flexibility in the length direction. The Helix series varies in wire diameter and mesh opening.

Material: Bronze Stainless Steel

*confirm availability for different alloys, colors, and textures

Type:

Flexible - Flexible cable fabrics are woven of precision wire cable in the warp (vertical) direction and a solid wire in the weft (horizontal) direction giving flexibility to the fabric in one direction.

Multi-Flex - Select fabrics are flexible in both the warp and weft direction.

Rigid - Woven of solid wires in both the warp and weft directions for a stiff fabric in all directions.

Flexible

Weight: 1.32 psf

Max Width: 20'

Download: Data Sheet

Applications: Ceilings, Enclosures, Facades, Interior Partitions, Mesh Partitions, Parking, Partitions, Railing, Safety & Security, Solar Control, Steelweave View more

Projects: Care First Resource Center, Krypton Park and Ride, Munich Chamber of Industry & Commerce, Rabobrank, Stuttgart Private Residence, Adeam Ginza Six

Attachment Solutions: Woven-In-Bar with Hook Brackets & Springs, Woven-In-Bar Hook Brackets & Eyebolts, Woven-In-Bar with Eyebolts Top & Bottom, StealthLok, Woven-In-Flat-Bar with Clevises, Flat & Angle Frame, Flats with Flat Eyes, Flats with Clevis, Flat and Angle with Threaded Rod, Eyehooks, Eyebolts
