Escale 7×1

Name: Escale 7x1
SKU: 773
Availability: InStock

Product Details

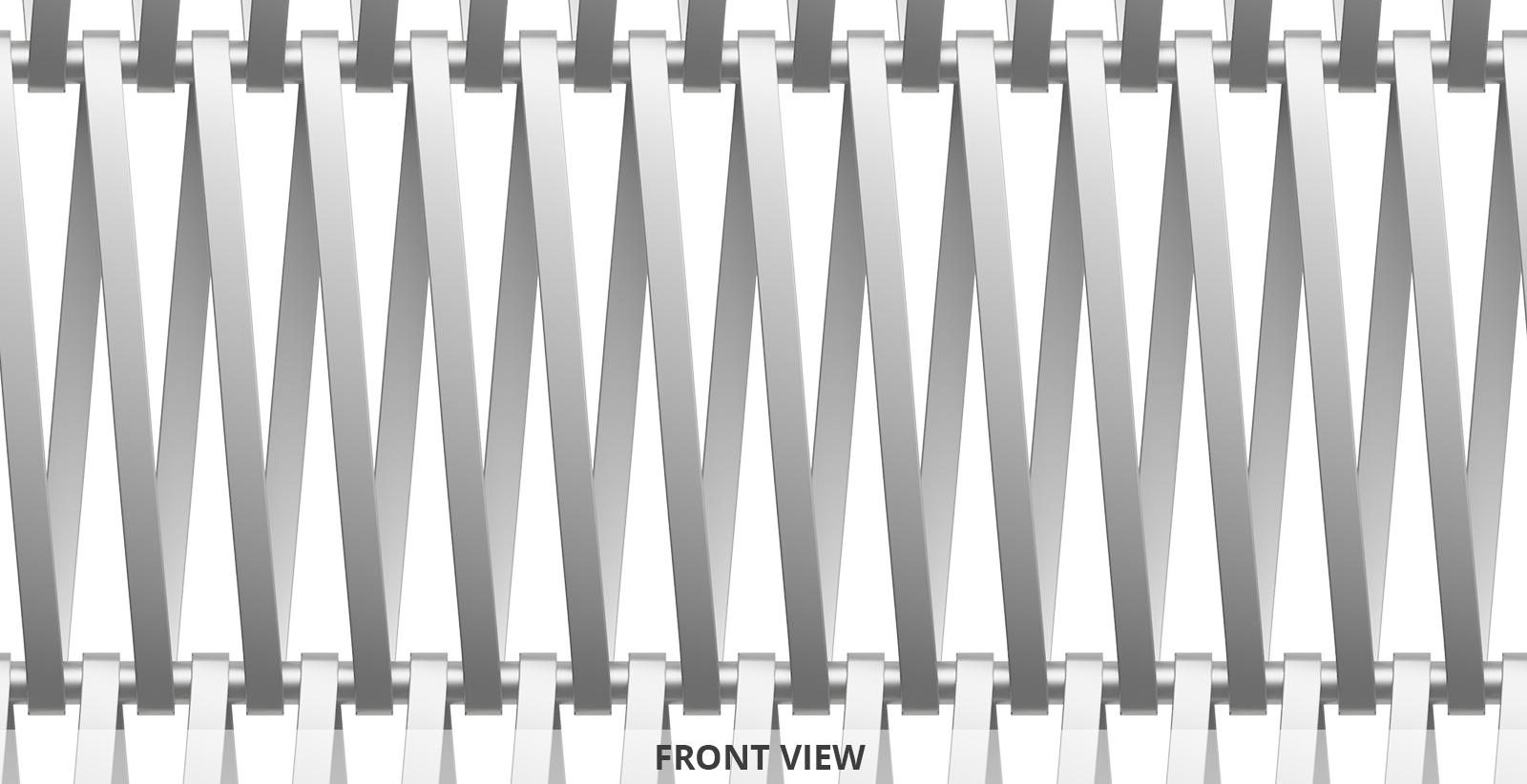

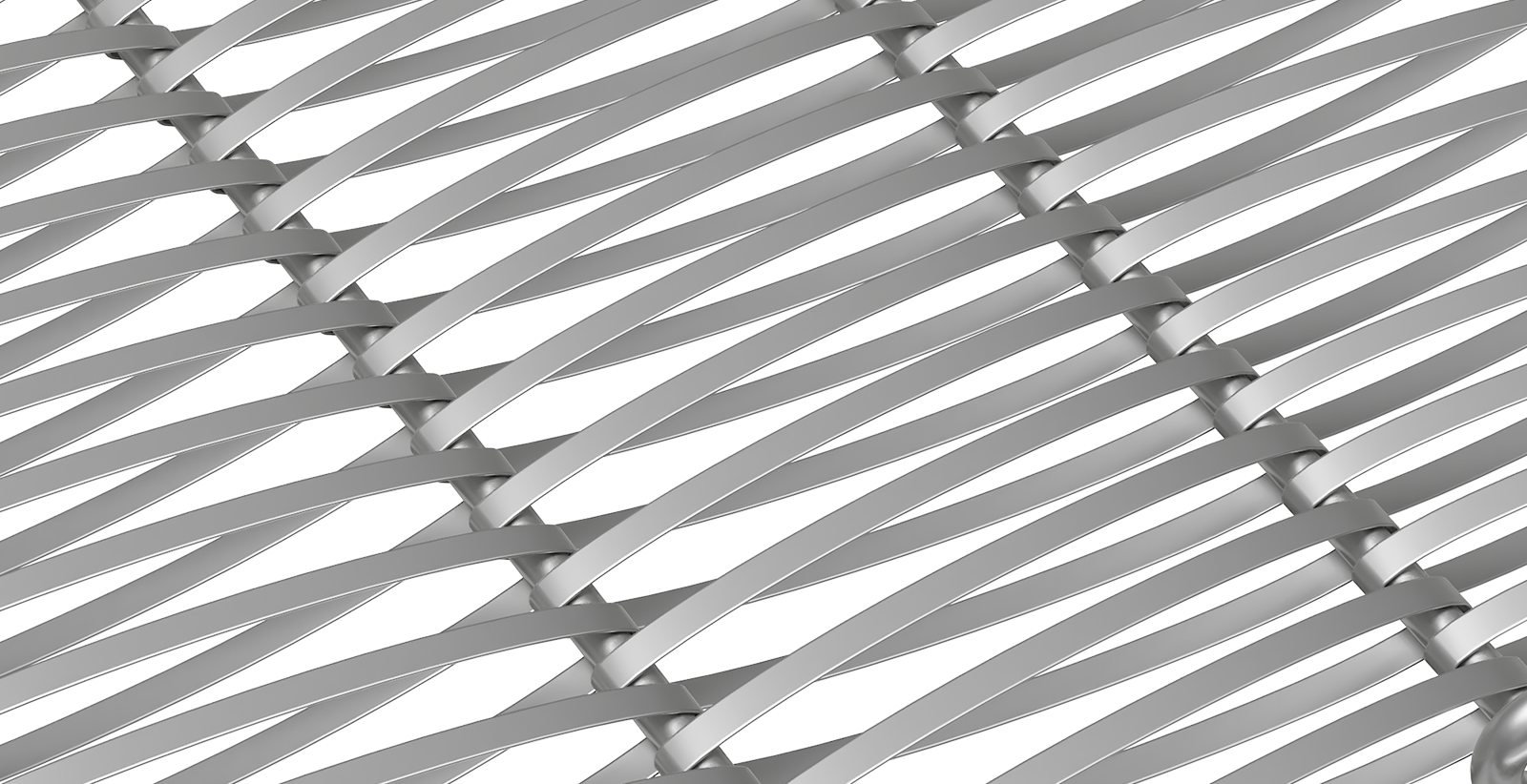

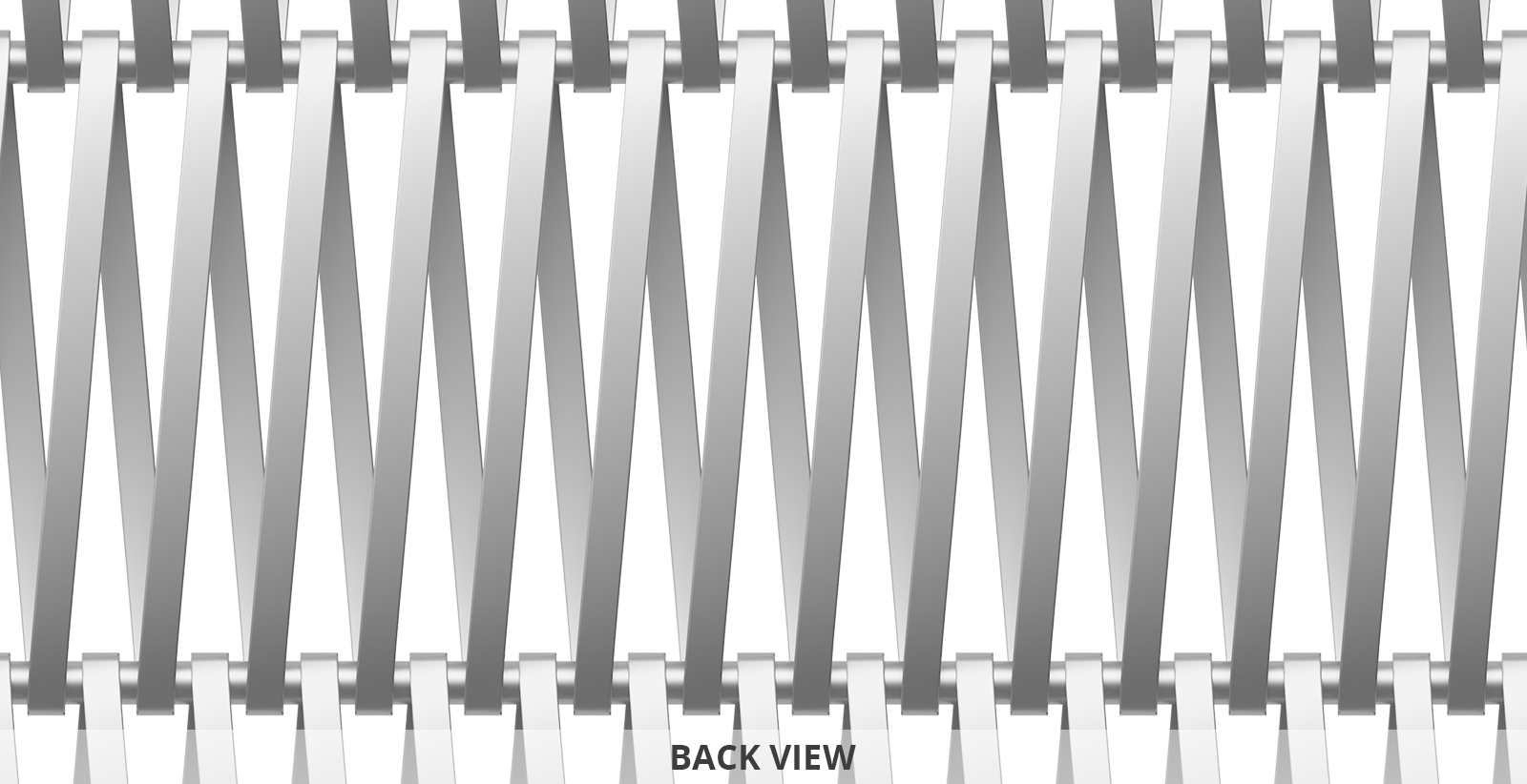

Escale flexible mesh is woven with alternating clockwise and counterclockwise spirals with a greater distance between rods than in the 5×1 product.

Material: Aluminium Bronze Stainless Steel

*confirm availability for different alloys, colors, and textures

Type:

Flexible - Flexible cable fabrics are woven of precision wire cable in the warp (vertical) direction and a solid wire in the weft (horizontal) direction giving flexibility to the fabric in one direction.

Multi-Flex - Select fabrics are flexible in both the warp and weft direction.

Rigid - Woven of solid wires in both the warp and weft directions for a stiff fabric in all directions.

Flexible

Weight: 1.85 psf

Max Width: 20'

Download: Data Sheet

Applications: Facades, Interior Partitions, Parking, Safety & Security, Solar Control

Projects: Dayton Convention Center, GKD-USA Headquarters, University of Florida - Research and Academic Center at Lake Nona, Barcelo Raval Hotel, Caja Magica, Centro Cultural Kirchner, Children's Palace, Bibliotheque Nationale de France, Ecole d'Art Calais, Estadio Santiago Bernabéu, Grand Theatre des Cordeliers, Les Tours du Pont de Sèvres, Maison Folie, Paris Expo Porte de Versailles, Polytechnique Federale de Lausanne, Sony Center, Tuanku Mizan Zainal Abidin Mosque, ParisLongchamp Racecourse, Ohel Jakob Synagogue, Kindluse Kool View more

Attachment Solutions: Eyehooks, Eyebolts
