Ellipse 2

Name: Ellipse 2
SKU: 769
Availability: InStock

Product Details

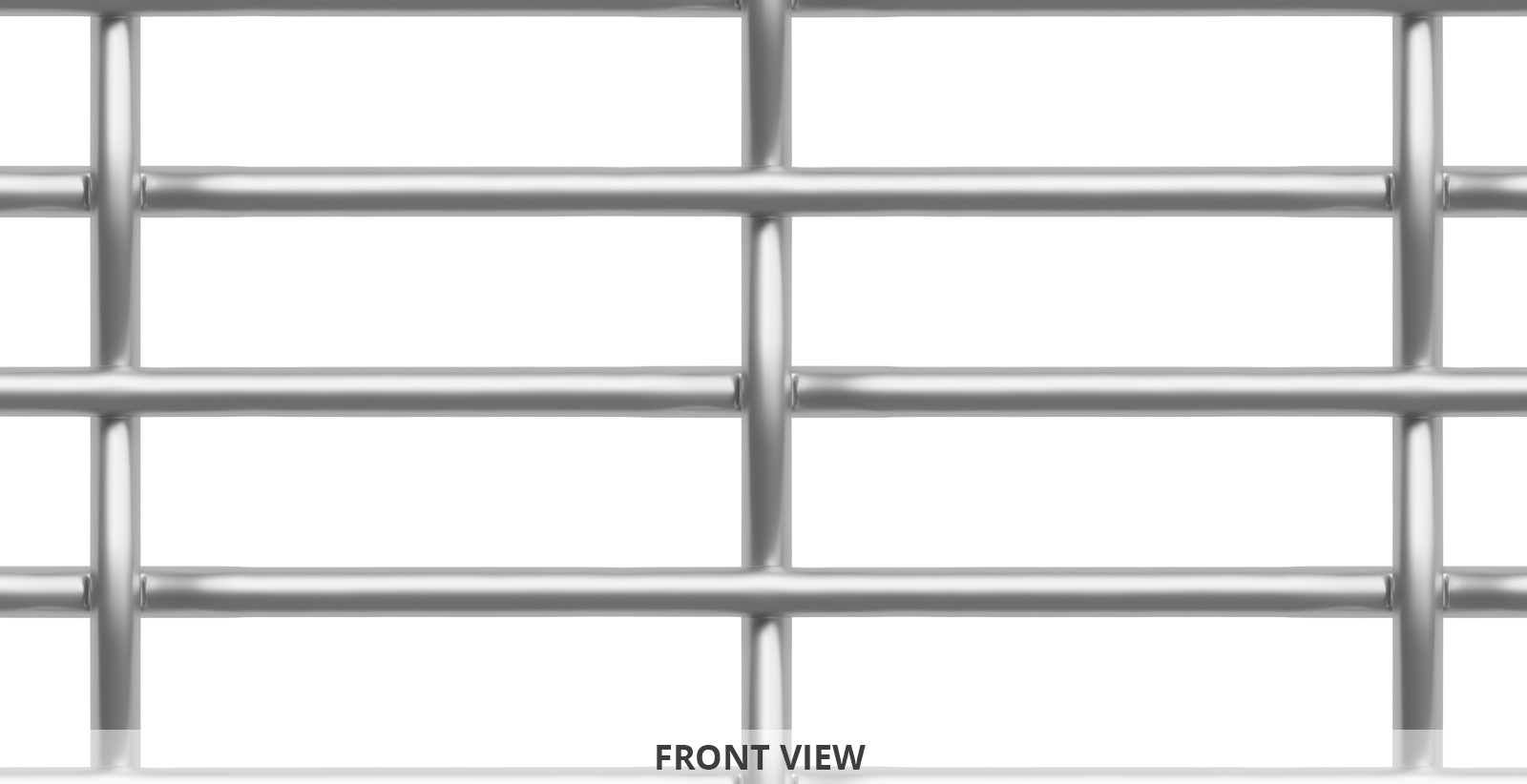

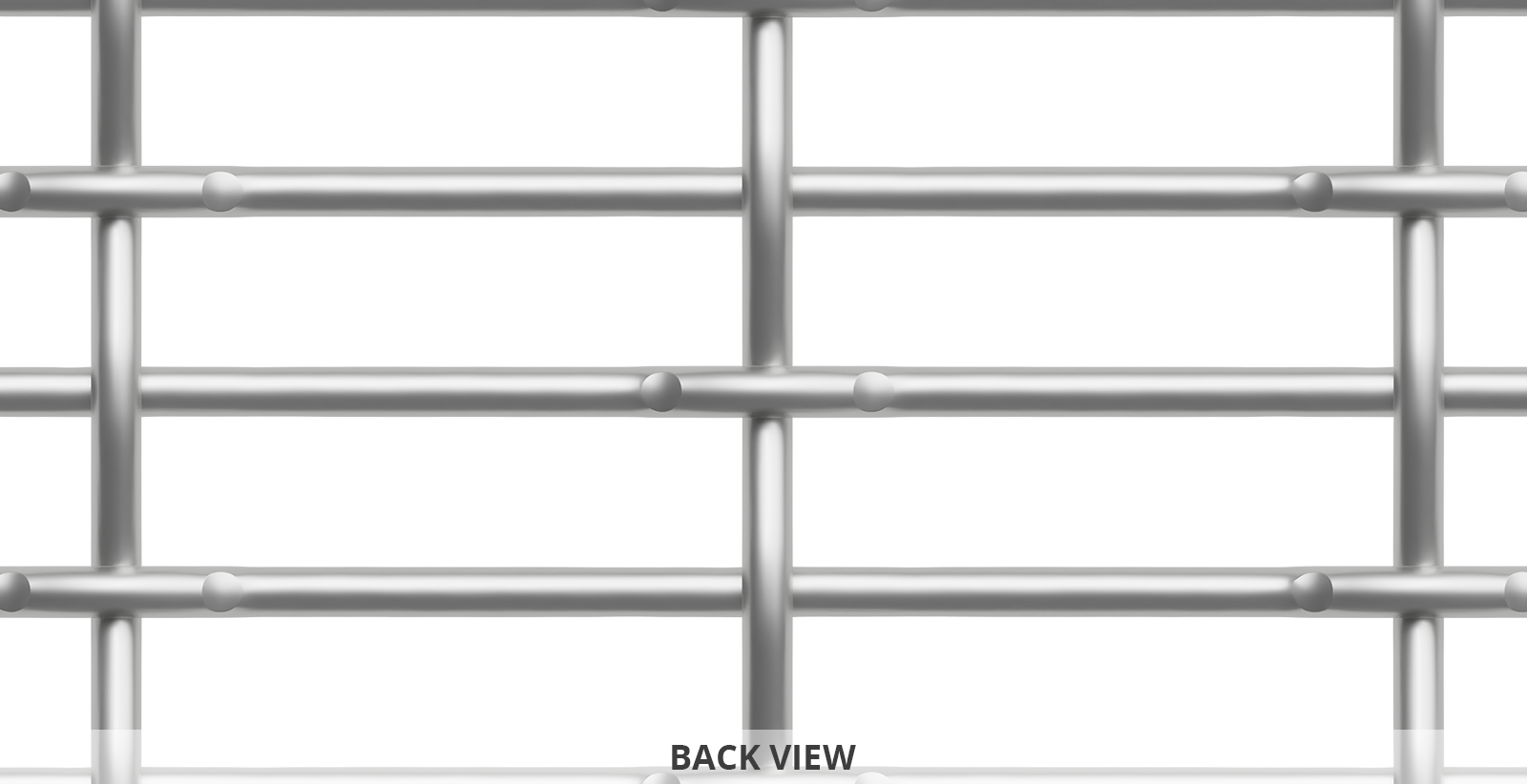

The warp wires on this rigid grid mesh are spaced to emphasize a horizontal pattern. The Ellipse series varies by open area.

Material: Aluminium Bronze Stainless Steel

*confirm availability for different alloys, colors, and textures

Type:

Flexible - Flexible cable fabrics are woven of precision wire cable in the warp (vertical) direction and a solid wire in the weft (horizontal) direction giving flexibility to the fabric in one direction.

Multi-Flex - Select fabrics are flexible in both the warp and weft direction.

Rigid - Woven of solid wires in both the warp and weft directions for a stiff fabric in all directions.

Rigid

Weight: 1.80 psf

Max Width: 101"

Download: Data Sheet

Applications: Ceilings, Covering, Enclosures, Facades, Parking, Partitions, Railing, Safety & Security, Solar Control

Projects: Washington, D.C. Silver Line Rail Extension

Attachment Solutions: Presidio System, U-binding Frame, Flat & Angle Frame, Flats with Flat Eyes, Flats with Clevis, Flat and Angle with Threaded Rod
Warning: Undefined variable $html1 in /srv/users/gkdmetalfabrics-dev/apps/gkdmetalfabrics-dev/public/wp-content/themes/maxcanvas_child/inc/woo.php on line 116

Warning: Undefined variable $post in /srv/users/gkdmetalfabrics-dev/apps/gkdmetalfabrics-dev/public/wp-content/themes/maxcanvas_child/woocommerce/single-product/add-to-cart/simple.php on line 43
COLOR AND SURFACE OPTIONS Contact Us
